Design vs Reality

Decided to check that savannah was behaving as it should be. As with any good process we have a nice flowchart that depicts the allowed transition states.

ie:

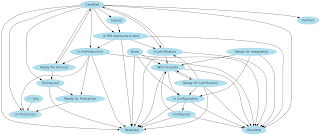

however, thanks to a quick 'copy n paste' into graphviz it appears the reality is a little more complicated. Ho hum, cleanup time....




update: Just tidied up savannah and lo:

1 comment:

Dennis van Dok said...

Nice one, Andy! But the official graph has flaws too: there is no state transition to or from obsolete, which accounts for most of the arrows in the generated graph...
